Ventilator-CA-160-ERV-PH

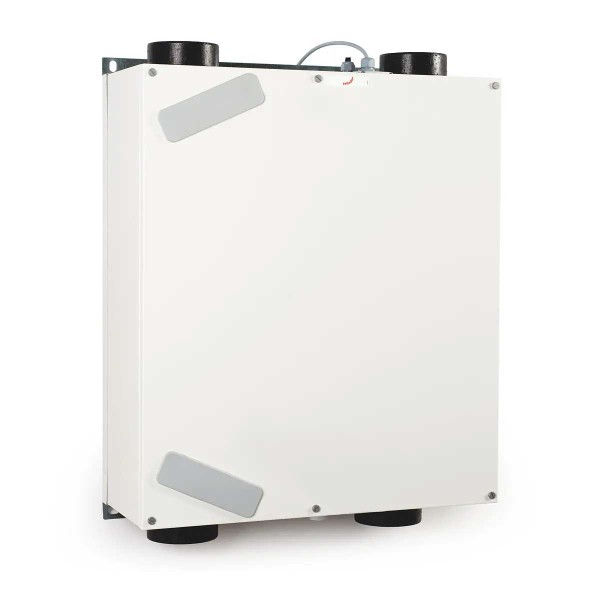

Application The Zehnder ComfoAir 160 comfort ventilation unit was specially developed for use in demanding residential and commercial buildings. It combines maximum comfort, simple operation and a high level of efficiency with flexible integration in building services. The fans in the Zehnder ComfoAir 160 ventilation unit are also more powerful in comparison with the Zehnder ComfoAir 140 and move 150 m³/h of air at an external pressure of 100 Pa. Efficiency The integrated cross-counterflow heat exchanger achieves a level of efficiency up to 95%. For the convenience of the user this means: no unpleasant draft effects, because the supply air is heated almost to room temperature even with temperatures around freezing.

Benefits:

• • 100% full and filtered summer bypass.

  • Left or right hand configuration in one unit.

  • Flexible installation options either ceiling or wall mountable.

  • Constant volume motors to maintain commissioned flow rates.

  • Tool free filter access.

  • Volt free contact boost capability.

  • BMS capability via RS232 protocol.

  • RFZ wireless connectivity option.

  • 0-10V input option.

  • ISO Coarse >65% / ISO ePM1 >65% (G4 / F7) filter combination as standard for pre-heater version.
