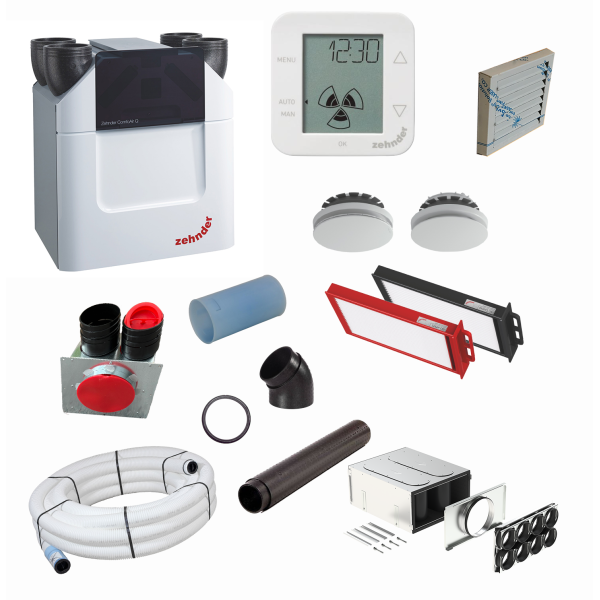

Zehnder ComfoAir Q350 Complete ERV Kit
Brand:
Zehnder
Product Code:
9668-01-Q350-Kit2
The Zehnder ComfoAir Q350 Complete ERV Kit is a high-efficiency ventilation solution designed for medium to large homes and small commercial spaces from 1,600 to 2,300 sq.ft.. This 6-inch system delivers balanced indoor air quality, recovering heat and moisture for superior comfort and energy savings. Perfect for moderately sized spaces, the Q350 kit includes all components for a seamless installation. The kit provides all essential parts for a complete setup, covering ventilation, controls, ducting, and filtration.
Price:
$11,079.15
Q350 Energy Recovery Ventilation System Parts List
Detailed Parts List - Q350 Energy Recovery Ventilation System 6"
Contains the HRV or ERV unit, the preheating component, the drainage component, and the unit filters. Please verify unit orientation before completing order.
| Article No. | Description | Quantity |
|---|---|---|
| 9668-00 | Ventilator-Q-350-ERV-TR-SI | 1 |
| 9656-00 | Comp-Pre Heater-Q | 1 |
The ComfoConnect LAN C allows the user to completely control the unit using the Zehnder App on their smart device. Also included is the ComfoSense Controller, which is a wall mounted control unit that gives the user access to the system's functions. These systems are designed to replace the bathroom exhaust fans and the use of booster switches requires the Option box. Additional sensors are available such as humidity and CO2 sensors.
| Article No. | Description | Quantity |
|---|---|---|
| 9619-00 | Control-ComfoConnect-Lan C | 1 |
| 9617-01 | Control-ComfoSense-C67-w/Box | 1 |
| 9556-00 | Comp-Bath Boost Switch-Wired | 3 |
| 9620-00 | Control-Optionbox-Q | 1 |
Contains all components needed to penetrate the building envelope and connect the unit to the outside. The Exterior Wall Grills, Rolflex Gasket, and single piece of ComfoPipe are necessary for rough in. Please measure installation areas to verify quantities needed.
| Article No. | Description | Quantity |
|---|---|---|
| 9631-00 | Duct-ComfoPipe-160mm-1m (Measure) | 10 |
| 9632-00 | Duct-ComfoPipe-160mm-45º (Measure) | 8 |
| 9633-00 | Duct-ComfoPipe-160mm-Directional Coupler (Measure) | 2 |
| 9641-00 | Duct-Exterior Grill-160mm | 2 |
Contains the components required to connect the internal ducting to the unit, including the silencer and manifold.
| Article No. | Description | Quantity |
|---|---|---|
| 9739-00 | ComfoWell-End Plate-4x2-160mm | 2 |
| 9737-00 | ComfoWell-Silencer-4x2 | 2 |
| 9723-00 | ComfoWell-Manifold-4x2-T | 2 |
Contains the ducting from the ComfoWell to the rooms. Ducting lengths are approximated, please verify quantities. This entire section is necessary for rough in. Please measure installation areas to verify quantities needed.
| Article No. | Description | Quantity |
|---|---|---|
| 9272-00 | Duct-ComfoTube 75-162.5ft (Measure) | 8 |
| 9274-00 | Duct-O Ring-ComfoTube 75 | 40 |
| 9273-00 | Duct-Coupling-ComfoTube 75 | 4 |
| 9511-00 | Duct-Marking Tags-ComfoTube-10R/10B | 1 |
Contains register boxes shown in the Air Distribution Schedule above. This entire section is necessary for rough in.
| Article No. | Description | Quantity |
|---|---|---|
| 9790-00 | Register-Round-3x1 | 8 |
Contains the register cover styles shown in the Air Distribution Schedule above.
| Article No. | Description | Quantity |
|---|---|---|
| 9609-00 | Diffuser-Round-Supply-Luna | 4 |
| 9764-00 | Diffuser-Round-Extract-Luna | 4 |
Contains all filters and filter accessories.
| Article No. | Description | Quantity |
|---|---|---|
| 9672-00 | Filter-Q-Set-G4/F7 | 5 |
Important: Measure Before Installation
To ensure proper installation of your Q350 Energy Recovery Ventilation System, accurate measurement of your specific installation requirements is essential. The quantities listed in our standard package are estimates and may need adjustment based on your building's layout.
⚠️ Please Note: The standard package includes estimated quantities of ComfoPipe components. You may need additional components based on your specific installation requirements.
Measurement Steps:
-
Determine the exact locations for your intake and exhaust connections
-
Measure the total straight line distance needed for all ComfoPipe runs
-
Count the number of turns required and determine the angles needed
-
Add approximately 10% extra length to account for cutting waste and adjustments
💡 Tip: For most installations, you'll need additional ComfoPipe sections beyond the standard package. One meter sections can be easily cut to your exact specifications.
Standard Package Components:
SKU |
Description |
Quantity |
|---|---|---|
9631-00 |
Duct-ComfoPipe-160mm-1m |
10 |
9632-00 |
Duct-ComfoPipe-160mm-45º |
8 |
9633-00 |
Duct-ComfoPipe-160mm-Directional Coupler |
2 |
How to Adjust Your Order:
After measuring your specific requirements, you may need to add additional components to your cart:
-
For additional straight runs: Add more "Duct-ComfoPipe-160mm-1m" units
-
For additional turns: Add more "Duct-ComfoPipe-160mm-45º" units
-
For additional directional couplers: Add more "Duct-ComfoPipe-160mm-Directional Coupler" units
Add Additional ComfoPipe Components Add Additional ComfoPipe 45º Add Additional Directional Coupler
If you need assistance with calculating the correct quantities for your installation, please contact our technical support team.
ComfoFresh Ducting: Accurate Measurement Required
The ComfoFresh Ducting system connects your ComfoWell manifold to the individual room terminals. Proper measurement of your specific requirements is crucial for a successful installation.
⚠️ Important: The standard package includes 2 rolls (162.5ft each) of ComfoTube 75 ducting. You must verify if this quantity is sufficient for your specific building layout before proceeding with installation.
How to Calculate Required Ducting:
-
Map out the precise location of each supply and exhaust terminal
-
Measure the path from each terminal to the ComfoWell manifold
-
Account for bends and routing around obstacles (add 1ft per bend)
-
Sum all paths to determine total required length
-
Add 15% extra for cutting waste and potential route changes
💡 Pro Tip: Keep ducting runs as short and straight as possible. Each 10 feet of additional duct length or bend creates resistance that can reduce airflow efficiency.
Standard Package Component:
Article No. |
Description |
Quantity |
Unit Price |
Total |
|---|---|---|---|---|
9272-00 |
Duct-ComfoTube 75-162.5ft |
2 |
$374.00 |
$748.00 |
Common Installation Scenarios:
Home Size |
Typical Rooms |
Estimated Ducting |
Rolls Needed |
|---|---|---|---|
Small (<1500 sq ft) |
6-8 terminals |
180-240 ft |
2 rolls |
Medium (1500-2500 sq ft) |
8-12 terminals |
280-360 ft |
3 rolls |
Large (2500+ sq ft) |
12+ terminals |
380+ ft |
3+ rolls |
Need Additional Ducting?
Based on your measurements, if you require additional ComfoTube ducting:
-
Each roll contains 162.5 feet of flexible ducting
-
Additional O-rings (item 9274-00) may be needed for connections
-
Consider ordering extra coupling pieces (item 9273-00) for longer runs
Add Additional ComfoTube
For assistance with calculating your specific ducting requirements, please contact our ventilation design specialists at.
